Benchmade 200 Puukko – Call me Snake.

21/01/2019 nemosandman 1 Comment

This is the first Benchmade’s review for a long time. Why ? Not because of the quality of Les De Asis company’s products but because I was not really excited by their production in the last decade after a huge love with their AFCK back in 90’s, and also with Nimravus and all those blades in M2HS which is a tungsten high speed steel, the granddaddy of CPM M4.
I still got a AFCK in M2HSS and browsing that blog, you will find it here.

So here we go, two words has caught my attention on that new Benchmade: Puukko and CPM3V.

“CPM 3V is a high toughness, wear-resistant tool steel made by the Crucible Particle Metallurgy process. It is designed to provide maximum resistance to breakage and chipping in a high wear-resistance steel. It offers impact resistance greater than A2, D2, Cru-Wear, or CPM M4, approaching the levels provided by S7 and other shock resistant grades. CPM 3V is intended to be used at 58/60 HRC in applications where chronic breakage and chipping are encountered in other tool steels, but where the wear properties of a high alloy steel are required.” Source Crucible.

COMPOSITION
C Mn Si Cr Mo V
0.80 0.30 1.00 7.50 1.30 2.75

To quote my friend Max Wedge:
“3V loses 1/3 of the toughness going from 58hrc to 60 hrc (still 1/3 above A2 at 60 hrc, and A2 is indestructible… almost). Both 4V and Cruware start to shine around 60-62 Hrc… so, 3V for choppers, 4V or Cruware for slicers, Cruware having best corrosion resistance ( trait appreciated by soldiers & foresters)”

So this tough short blade made of chopper steel is at a very good bargain !! Let see what it is all about.

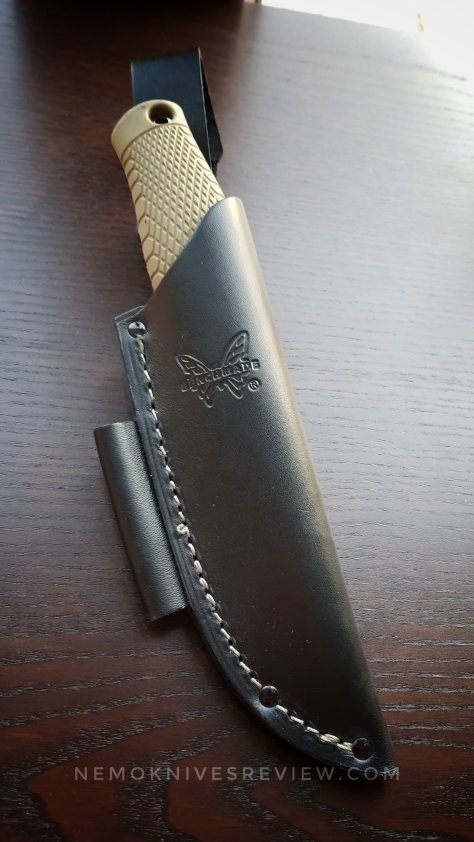

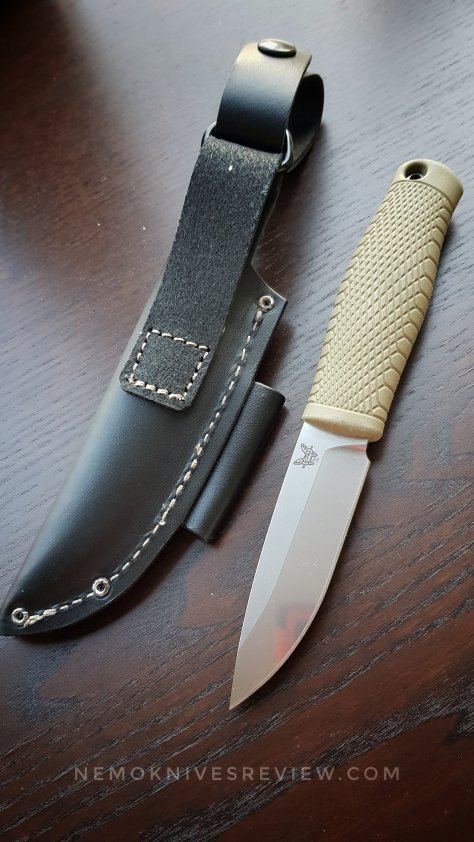

The leather sheath is beautiful even (if there is a loop in the stitching… I will upgrade it into a kydex for pocket carry.) and cleverly designed as a dangler. You can remove the loop to transform it into a classical sheath.
There is a place for sparkling rod in the Bushcraft fashion. I don’t care about carry a knife of that size attached to my belt. I prefer to have it inside my pocket or my bag.

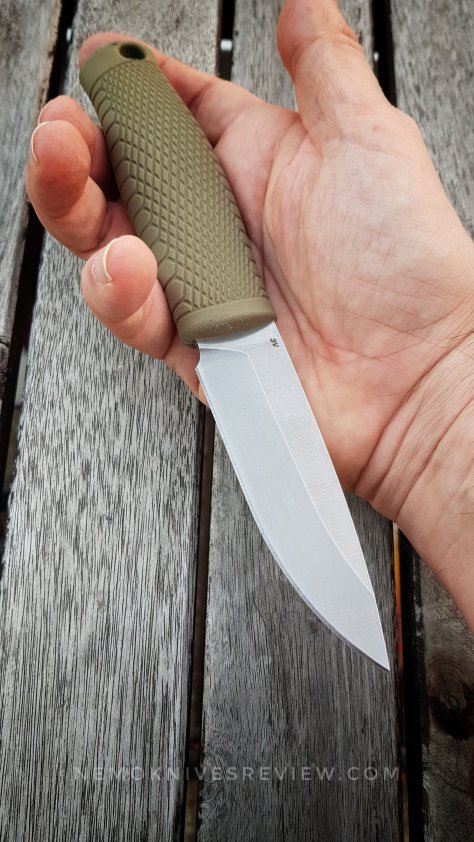

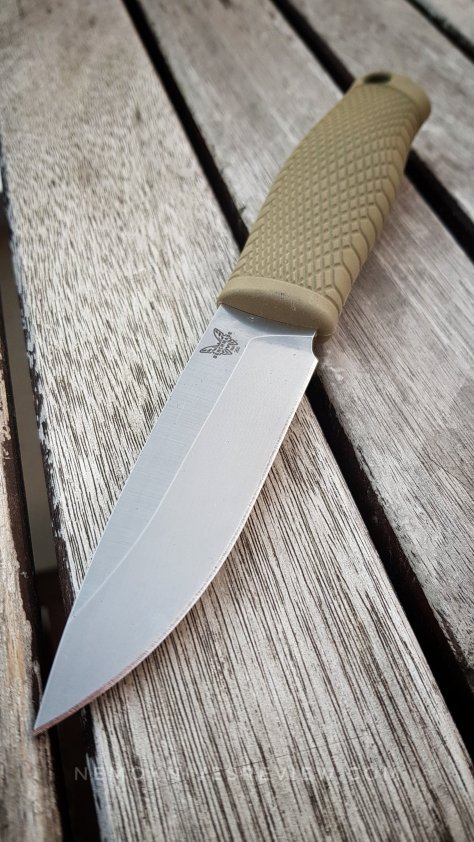

The blade is an eye candy for some reason it reminds me the small SOG Seal Pup knife with no false edge but that’s me… Is this a Puukko ?

That handle is made in some kinf of thermorun… but it is rubberized Santoprene is a soft, non-hygroscopic elastomer which exhibits excellent surface appearance, a durable soft-touch feel, excellent colorability and excellent “processability”… made by Exxon.

It is made from underground forgotten dinosaurs and jurassic biomass aka “petroleum” hence the look of scales on it ? Because that handle looks like some sort of snake or cold blood creature. I love it.

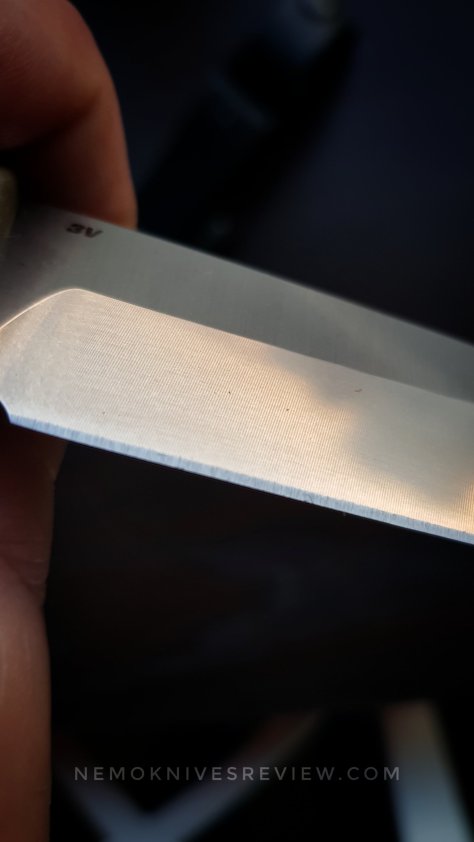

Now is this a scandi ground blade ? Nope. There is a secondary bevel. Is the knife sharp ? Yep, very sharp but could be better. Later/soon on that.

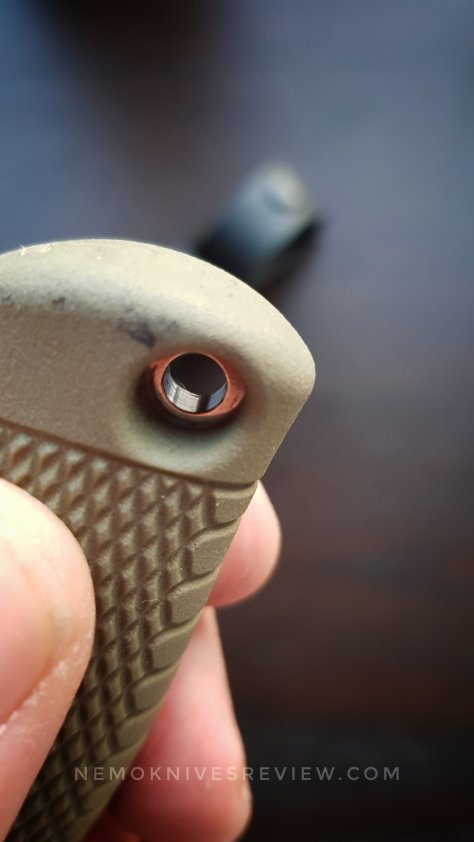

It is a hidden tang construction and you can see the steel in the lanyard hole. This knife is solid as CPM3V is really tough !!
Hidden tang are great when you work in cold weather, protecting your hand from a frozen steel.

That blade is short but handy: it asks to be used hard like… Snake Plissken’s hard actually ! Because 3V is magic in toughness ! 😀

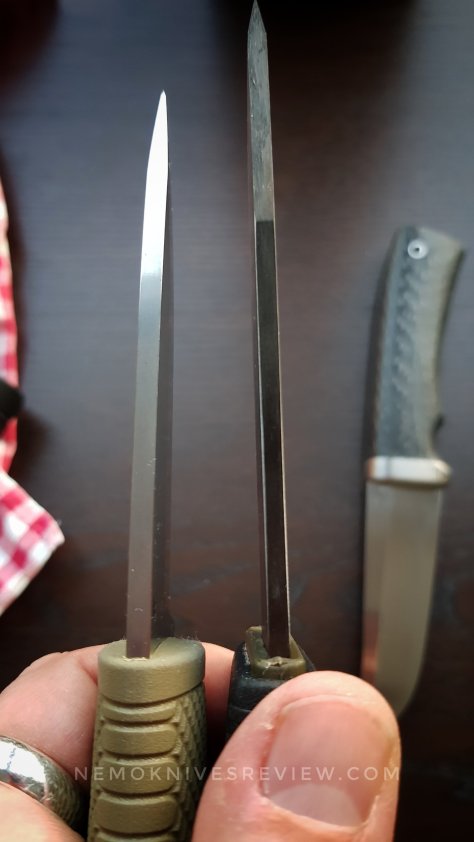

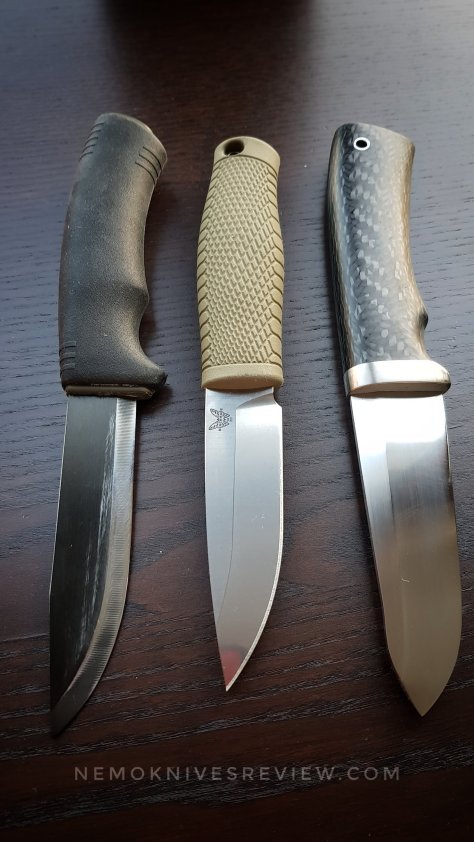

Compared to a Mora or the Urban Hunter (from Pekka Tuominen) the Benchmade 200 stands its ground.

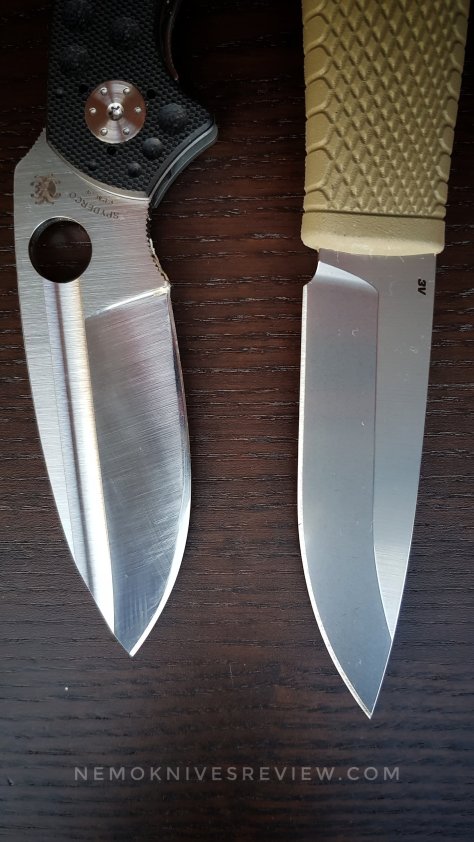

Here are two vision of CPM3V industrial use. Ed Schempp Spyderco Tuff is pure business. So that BM200 should be even tougher as a fixed blade.

Teamed with a Manly Wasp, you got a great combo.

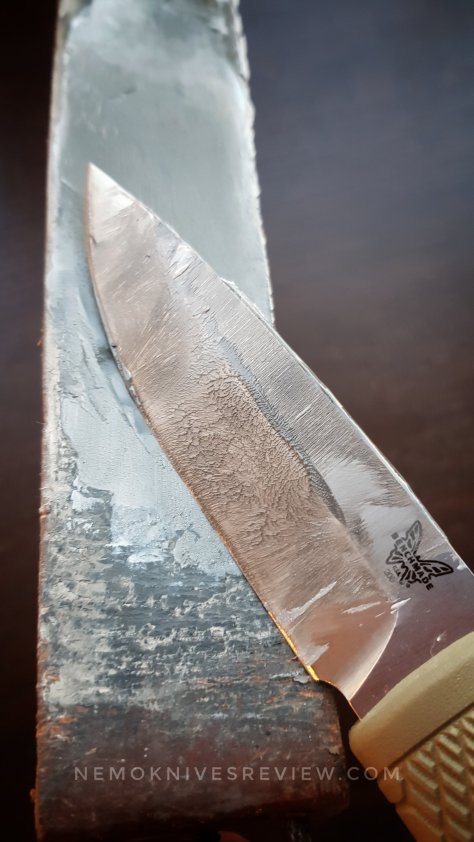

But a puukko (in my book) needs a thinner edge and it is time to scratch that blade to de-shoulder all that. Diamonds do scratches but then scratches will be polished later. Thinner convexed edge is destin to go deep and get twisted; this is a tough steel.

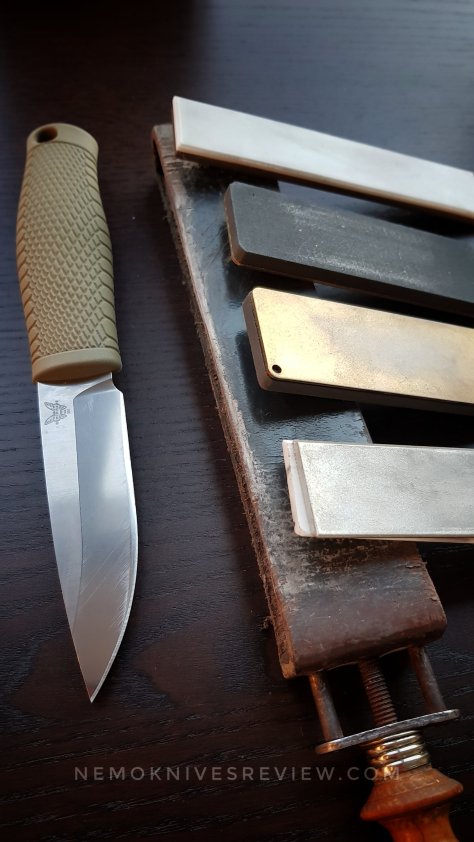

Diamonds, ceramic and leather. Who needs more ? CPM 3V is really like chewing gum you need abrasive medium to form that convex edge.

A some compound with the leather stropping is mandatory to erase those scratches

See ? Now it is convexed and will be smooth on whittling wood. No worry for that edge stability again 3V is perfect for that use.

Standing next my Serrata which is my only naturally serrated knife.

So now, I just need some white ceramic to keep it sharp and some stropping. It is ready for testing. The Puukko shape is more for me a “Coutelas de Rahan” shape actually (French people will understand but here is the link: Rahan in Wikipedia.
making this little tough knife very appealing to bring it everywhere.
Everywhere is a good point to start. 😉

Uncategorized

Bark River Knives – Canadian Special CPM3V – Lord of the Forest

18/12/2013 nemosandman 1 Comment

This a first glimpse at a new acquisition: the Canadian Special has been designed by Mike Stewart owner of Bark River Knives and it is his favorite knife of this size.
It’s his own version of the famous Canadian skinner D.H. Russell Canadian Belt Knife made by Grohmaan since 1957.

This is not my first BRKT knife. I already got a Bravo 1 in CPM3V and an Essential in CPM-M4.
Again my Canadian Special came razor sharp. (Ordered at The Knife Connection, it was in France in 4 days BTW.) I was already amazed by CPM3V on the convexed ground blade of my Bravo 1 but I wanted a thinner edge. The same edge I got on the RWL34 blade of “Urbain II” my state of art hunting knife made by Pekka Tuominen.

One of my favorite all terrain outdoors knife is the famous Spyderco Bushcrafter. But as far as I love his ergos, I wanted the same kind of tool with a thin convexed CPM3V blade. That was my first goal when I had purchased the Bravo 1. It was evident other BRKT knives got better slicing performance without sacrifice to much strength e.g. the Canadian Special with its full flat convexed grind blade.

Also I really loved the curves on the Canadian Special. This atypical shape was also really attractive to me. A thin handle for a wider and pointy blade. This design looks ancestral for me.
Now beauty is in the eye of the beholder but I really love the light recurved edge, the leaf shaped blade, the almost full flat grind …
My Canadian Special is foremost destined to be used hard in the wood: batoning, light chopping, wood digging. CPM3V on such a thin edge platform should perform great. So far, I was not able to ruin a CPM3V edge either from Spyderco (The Tuff) or BRKT (I still waiting for a CPM3V Cold Steel Design which does not look like a Ninja’s dream…)

The handle was a little to square to my like but everything was easily adjust with some sandpaper (they are two pictures here after, the first was the first stage and the second another 15 minutes more) .
And without to void the guarantee which is really nice from BRKT: having the possibility to adjust a knife to your own like is a real plus. Now the handle suits me much better. I have also filled the back of the blade for the confort of my thumb.

My Canadian Special is easy to strop on leather and right now I can shave with it. Some push cuts in bambu were deep and with zero damage on the edge. I was was surprise by the size of the chips the knife was able to produce: thin edge and great geometry.

So here are some pictures of this new hard chore user, before more tests in the kitchen and in the woods:

BRKT CANADIAN SPECIAL CPM3V

Some words from Mike Stewart (Knife forums the 12th May 2012)
“I took My time with this design because I am not an overthinker. I wanted a hunter and a bushy built into one package. I kind of thought that If i did all the ovrthinking on the front end of this one I could use it and not look back – I was right for me on the CS.

I love the Arched Back of the Canadian Blades for Scraping an mashing stuff while keeping the point out of the way.

I wanted part of the edge straight for Bush work and wood work and enough Curve to do hunting and meat work.

I wanted great Geometry with a good thickness edge spine and I still wanted the grind not to come up to the very top so that I had a parting shoulder at the top of the Blade to help in batoning and splitting.

The handle is deceiving – it looks like that finger grooves are limiting – in actuality they are not and when you open your hand the knife rights itself because the area under the grooves is actually almost totally flat.

The knife is Comfortable for me in every way I grip a knife in use.

I have no illusions about how people feel about the Woodlore style handles and how they have been taught it is superior – I love the Aurora and the Bushcrafter but the CS fits me better and more securely.”

Uncategorized

BRKT (Bark River Knives & Tools) Bravo 1 Field Knife CPM3V – The Convexed Bushcrafter

26/05/2013 nemosandman 2 Comments

I have received this knife for my B Day from The Knife Connection. (Excellent service as always.)
This is the version without the “Hump” and I have chosen a weatherproof leather sheath. “…a genuine Bark River Sheath features heavy, top grain cow hide leather and Bark River Knives’ waterproofing treatment called Extreme Environment Protection. The EEP treatment features include: Water Resistant, Mold Resistant, Mildew Resistant, High Temperature Resistant, Will Not Dry Out. Unlike other treatments, EEP goes completely through the thickness of the leather leaving no room for water to damage your sheath. The finish can be maintained indefinitely with Obanuf’s Heavy Duty Leather Preservative. The treatment is guaranteed for 1 year, but should last for years.”

Beautiful convex grind. Excellent balance.
This knife is screaming to be used.

“The Bravo 1 Field Version takes the Bravo 1 to a new level of versatility for those looking for a superb outdoor knife. Whether you are field dressing large game, battoning wood or building a shelter, the Bravo 1 Field Knife will handle your chores with ease & beg for more! As a direct descendant of the Bravo 1, the Bravo 1 Field Knife builds on the sterling reputation of the Bravo 1 by providing a tough, great handling field knife that is sure to please the most descriminating outdoorsman/woman!”

Now this is a serious contender to me beloved Spyderco Bushcrafter as it has more momentum due to its weight behind the edge.
More later but enjoy the pics:

BRKT BRAVO 1 FIELD KNIFE
