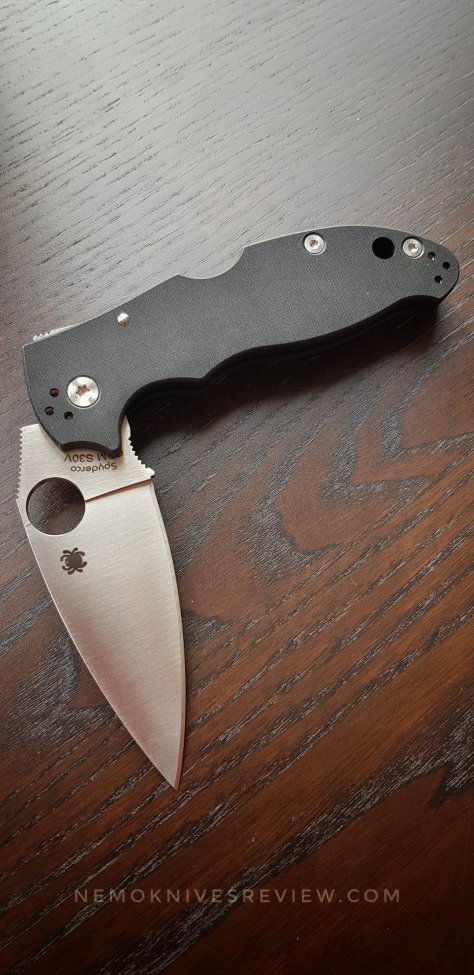

Manix 2 Lockback C101MBGP2 — Native 5.2 Grand Daddy !

This version of the Manix is equipped with one of the strongest lock ever produce by Spyderco in a light package. We are touching here a “Knife of Excellence” and one of the best Eric Glesser’s design. Sadly it is discontinuited in 2019 but this is also the last chance for you to get an absolute fabulous workhorse at a great price. Mine came for 99 dollars…

Can you imagine better bargain for an all made American knife of high performance ?

The operation of the lock goes deep in the notch while unlocking.
And the G10 is factory smoothed (I have used 800 grid to get it even smoother later)  and the action is perfect. Lockback lovers can only fall deeply in love with this one.

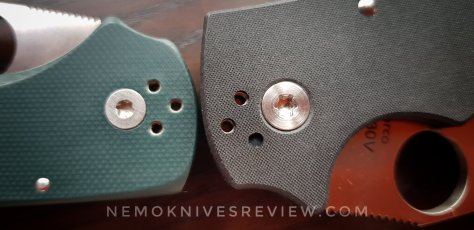

The pivot screws are huge even compare hardchore folders like the Yojimbo2 and it is only a part of the enhanced strength of this version as also the blade is a little thicker than normal Manix 2 version.

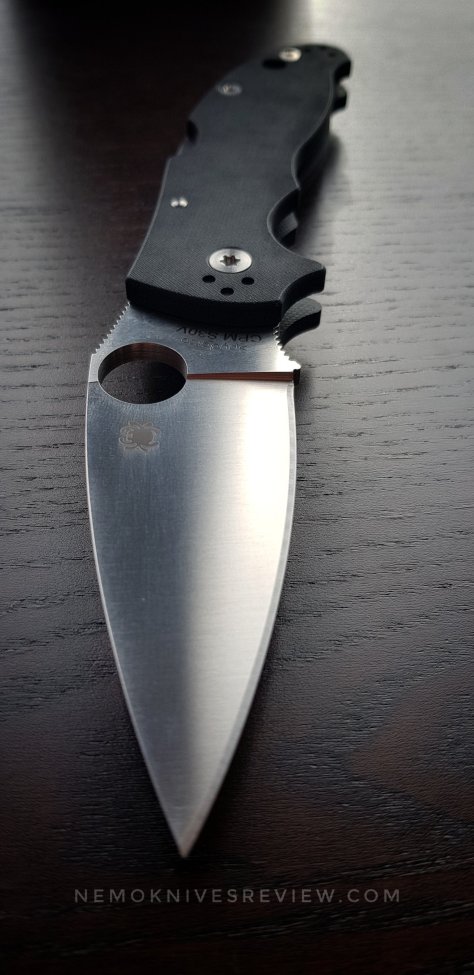

Here the blade thickness is 0.145″ (3.7 millimeters)
against the usual Manix  thickness of 0.125″ (3.2 mm) !!
Half a millimeter in black thickness is a simple way to have a stronger blade.

G10 is extraordinarily strong and with such thick scales this version of the Manix do not need any steel liners which can rust or get dirty too easily, especially if they are skeletonized !! So this thick G10 use is a great plus in my book: the Manix 2 Lockback is easy to clean and easy to check for grim … It’s a plus for hunters which use their knives in the fiels were hair and blood can get inside the handle. I should also mention than this one, like all my Native 5 got ZERO vertical play and his so smooth it is fun to flick open.
Also don’t forget you can make stealth fixed blade (even Fred Perrin made Balisong’s blade and handles) only with G10: this is a real solid material.
Here the blade is made of S30V. Spyderco knows how to heat treat than steel so this is a no brainer.

The plain stell back space and thick G10 slabs of the handle are just wonderful to avoid blisters. This is where you recognized a tool you can use hard without hand sore.
The balance of the knife is also improved with this full G10 construction, the sweet point is just under the second horn of the handle not the one of the choil, the other further back.

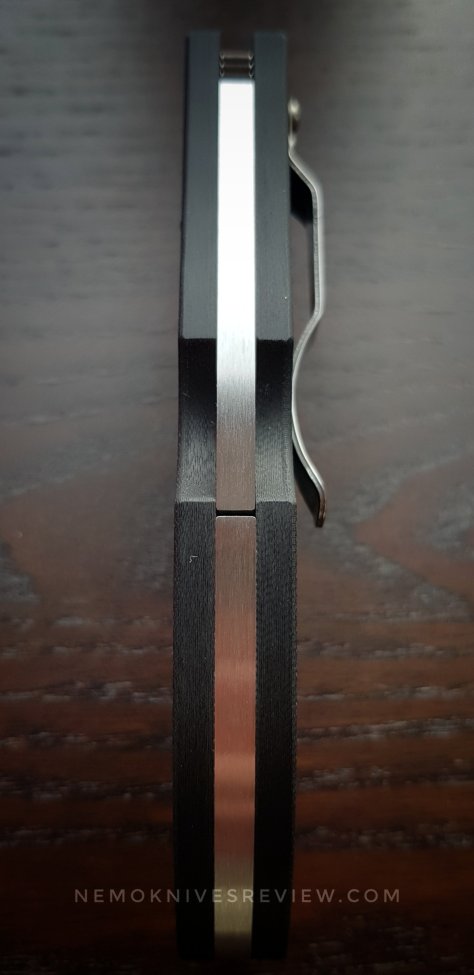

Well it is a lightweight linerless handle construction, fine-textured G10 scales and a stainless steel backspacer ! There is no lateral movement. You know my favorite expression “built like a tank“… so here we go !

The tolerance and the QC are really high. The action is smooth and the blade locks with a firm “KLAK!!”

As you can see, as much as I love the Shaman design, this Manix 2 is the true daddy of the linerless G10 version of the Native. Again a very solid and light EDC.
In both the ergonomy is at its zenith: large choil, no jimping madness the handle spouses your palm.

Both are made in Golden, Colorado, a plant with now very high tolerance and excellent quality control: the blade is perfectly centered.

So what do you got here ? A incredibly solid and versatile outdoors knife ! Easy to clean and maintain, rock strong locking system and of course the full flat ground leaf shape blade which is a must in cutting control. Strong lock, stronger blade, great ergos… This is really a shame this knife is discontinuited …

“We were sanding in the rain – like we invented sanding
There’s a light in the sky from a million street lights
And we danced all the steps from all those old time movies
Rolling down the hill with laughing hearts…”





Advertisements

About Locks — How to choose ?

wp-image-1457197829
Nowadays rendering of three iconic 90’s lock: Liner Lock, Back Lock and Integral Lock.

They are plethora of locks since the 90’s when the Tactical Folders trend started.
“Tactical” , a term which has been mainly used in a marketing way, means you can get access to your knife easily — A clip or a well thought pouch — and more important: to be able to open it and close it with one hand.
The blade needs to be locked in open position and also to stay closed while in the pocket.
Let’s have a look on the locks I prefer and use.

20180410_134558-01.jpegMaxamet Para3 Compression Lock.

The Compression Lock.
Described as:
“A lock mechanism that uses a leaf-like spring from a split liner in the handle to wedge laterally between a ramp on the blade tang and the stop pin (or anvil pin).”
What I like about that Spyderco in-house engineered system is how smooth the action is.
Spyderco is now developing and proposing flippers with the CL because the breaking action on the pivot is minimal. On my different CL folders I can open the blade in different ways: using the index, pushing the paddle to unlock the blade…
It’s fun. It depends on a detent ball to keep the blade closed.
It’s a lock easy to clean and check as the handle are all open framed. It also asked for some nested liners which, when they are skeletonized, need more attention for cleaning, especially when you use you knife in the kitchen like I do. I rinse them under hot tap water , wipe the blade and make them dry inside the pocket with body heat.
Also the compression lock can be hurting the palm of your hand when cutting hard matters.

20171208_120329-011500186881.jpegNative 5 Back Lock.

The Back Lock.
Described on the Spyderco” Edge-U-Cation pages as: “A locking system positioned on the back of the handle that uses a rocker arm that pivots in the center. A lug on one end of the arm engages a notch in the blade’s tang to lock the blade open.”

The Manly Peak and the Native 5.
This lock has been infamous since the Buck110 and all its copycats. Spyderco has developed mainly mid-locking system which can be unlock without changing your grip lick on a Buck110. It was demonstrated with the first Native how safe it was it unlock their knife and let the choil of the blade get in touch with your finger before to close it.
This is still the way I do it, even on my Delica and Endura which got no proper choil: unlocking the blade by pushing the lock free and let the blade falling half way on your finger. The Back Lock got a spring which is strong enough to avoid a detent ball. Old timers used to pu a match inside their closed Buck110 to pass the stronger spring tension and get it open faster. On Spyderco’s, it’s also easy to avoid any locking noise just by pression the paddle before it get completely opened. Unless the blade is very heavy like on XL Cold Steel Voyager, it’s not a lock for gravity opening. But it’s one of the most solid lock. In fact because of the way it’s engaged, it can be much more solid than all the other locks. Spyderco were testing their strong back found on the Chinooks and Manix with amazing results.

wp-image-1298363584
It’s not the easiest lock to clean as there is no open framed handle. It’s hard to see if debris can be jammed in. Also it’s not the funniest lock to use as the spring tension is felt during all the opening and closing motion. The Spydies with relatively heavy handles can be spyderdropped for quick opening. I do that on my Knifecenter stainless steel spacered Delica for example. It’s also easy on your palm during hard cuts because of their closed handle spine. Some Compression Lock haters are Back Lock lovers because of that confortable handles.
Also I have noticed on many of my Back Locks knives some vertical play when cutting on board which brings us to…


The TriAd Lock
Featured on Cold Steel’s folders it is essentially a Back Lock with a stop pin. There is no more vertical play when cutting. It doesn’t change anything toward the negative force used to close the lock blade.
You can also find inside the Chaparral an hidden stop pin invisible as it’s hidden near the pivot.

The Liner Lock.
“A locking system developed by custom knifemaker Michael Walker that uses a leaf-like spring split from the liner to wedge laterally against a ramped surface on the tang of the blade.”
This lock was the king of Tactical frenzyness back in the 90’s. The Benchmade CQC7 and AFCK promoted them in titanium and Spyderco developped their Military with a stainless steel liner lock. If I remember well Sal Glesser and Les de Asis were together private students of Bob Terzuola which is a master in liner locks making before to start their own production. Depending on a detent ball, the liner lock was bringing that smoothness the Back Lock could not provide but it was not the strongest lock available.

wp-image-1554915927Ed Schempp Euroedge strong liner lock.

To test it many people tried the infamous and stupid spine whack and many time with shock the liner was unlocked and damaged by that treatment.
It’s a very easy to lock to get open and close fast just be careful to put your finger out of the way when closing.
Titanium liner locks are wearing more than stainless steel liners.
It should not be difficult to clean depending of the handle conception. On that matter the last version of the C36 Military got rid of they spacer and got now a full open handle for easy check.

The RIL
Then Chris Reeve came with his Sebenza and used a lock bar that is integral to one of the handle scales. It was giving you the sentiment, you hand’s grasp was also enhancing the locking mechanism. It’s also a very easy mechanism to clean and check hence the Spydiechef, or the K2 which are easy to use in the kitchen even after being defiled by grease and meat…

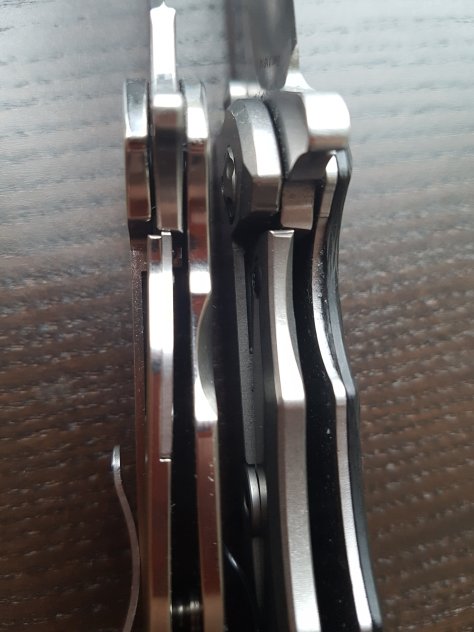

20171130_113248312135934.jpgRIL of the Advocate and the ZT550.

The PPT is a mix of both RIL and liner designs with the possibility to grasp it and hold it in opening position.


BALL BEARING LOCK
“A patented compressive lock that wedges a ball bearing between a fixed anvil and the blade tang. The mechanism also serves as a detent to hold the blade in the closed position.” I was developed by Eric Glesser for his Dodo and can be found on the Manix 2 folders with a caged ball version. Some people found a lot of similitude with the Axis Lock from Benchmade but here, instead of two omega springs, it is a coil spring pushing a ball bearing made of ceramic of stainless steel. It’s smooth but not as easy to clean as other locks. Actually I prefer it on the Lightweight version of the Manix which is my main travelling knife with its CPM110V blade. It’s engineering makes it one of the strongest as you can not squeeze a ball bearing easily and it is also self adjusting.

The cage ball can be exchange with a custom titanium cage in case of breaking after years of using. It happen to my cousin who has modeled his own resin ball.

The Balisong Lock.
This could be the most fun system to use and also the strongest. Easy maintenance, no spring… It’s a very old design. The first trace was found in 1780 in France with a knife called “Le Pied Du Roy” (The King’s Foot) and circa 1800, butterfly knives were uncommon. They were made in Paris and Thier. There is a beautiful collection of the old Butterfly Knives in the Thiers Museum.  French Army troops were provided with Butterfly Knives, but after WW2 there is no more trace of Butterflies made by this brand.
(More to come in the re-edition of the Fred Perrin’s balisong review soon.)


Locking a folding blade has been a puzzle for engineers for centuries. The roman folders were not locking and 2000 years ago a folding knife’s handle was considered as an attached sheath which means it was hold like a razor: by the blade.

So how to choose a lock ? Recently I have been surprised on how well the Bulgarian Manly Peak was operating: no vertical or lateral play on its very strong Back Lock. I have been playing with the Sliverax Compression Lock flipping options. My old Sebenza RIL lock is still in great shape and my Ed Schempp Bowie flies in opening position…


Lock is just a matter of taste and use, selling a design just by its lock won’t work. Some designs are made for compression lock like the Sliverax wasp shape flipper design could not go easily with another lock.

But always remember a folder cannot be as strong as a fixed blade. Marketing can be your enemy but the main enemy of locks are shocks because its weakest element will give in, bend or broke. Now when you choose a knife made by reknown makers and manufacturers you can trust their locks but it’s not the case with all the copycats and cheap knives which often got very bad quality elements ready to break or bend at the first use. I’m not saying the best locks are the most expensive but looking for quality in the making should be mandatory in your choice.

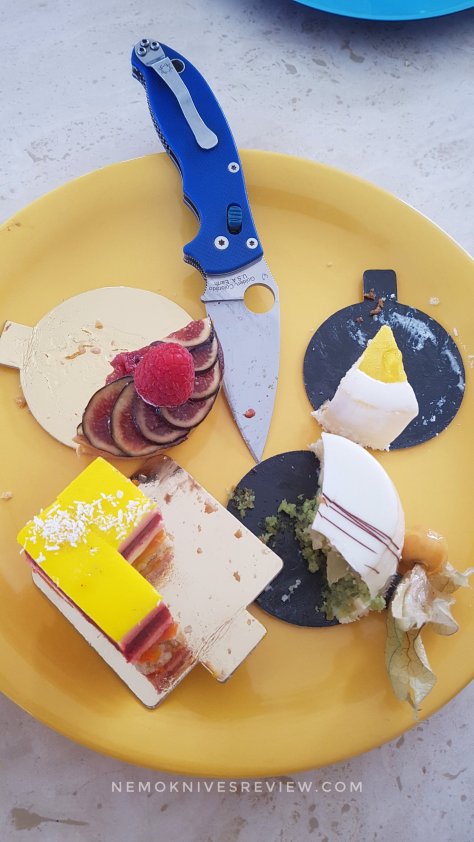

Spyderco Manix Blue Sprint C101GBL2 — Seven Years of EDC, New Homemade Caged Ball.


My wife’s cousin used his Manix 2 since I have given it to him seven years.
The knife is his EDC both at his work and at home.
Every year I sharp it for him and I have noticed that the knife looks like new after all those services.

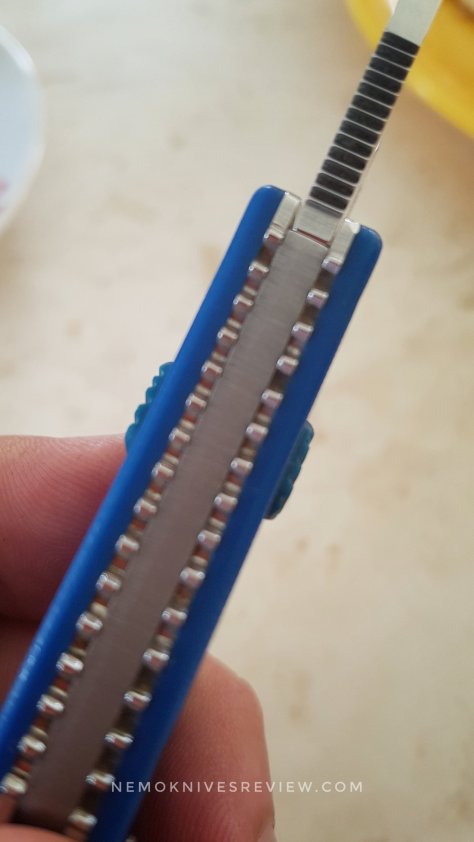

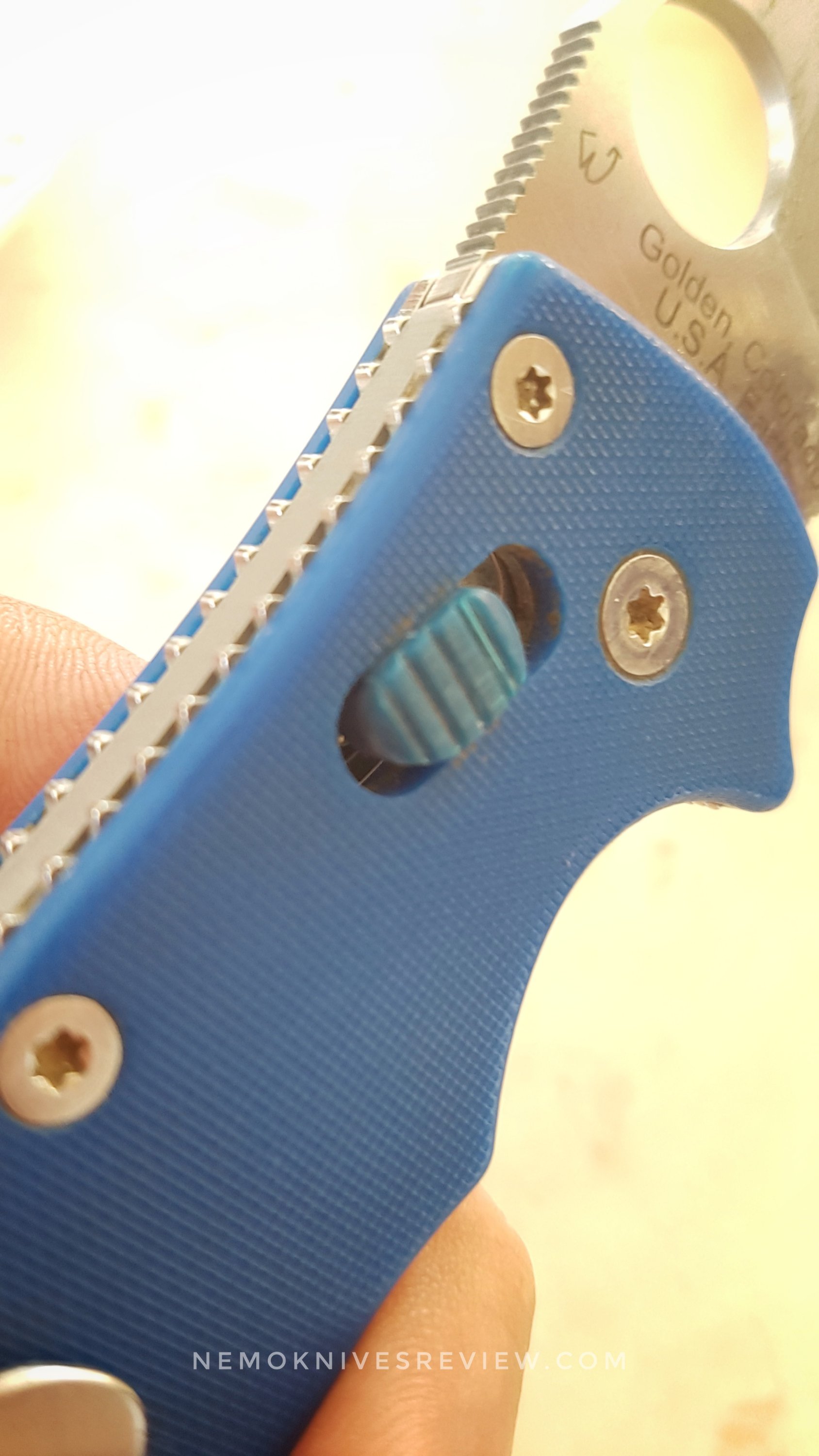

But last week the caged protecting the ball lock has broken (The hardened steel ball bearing encased in a polymer cage).
Thanks to his work, where he works as modeling mold, he was able to measure the broken part and make a new one in resin. He choosed blue resin for obvious reason.
He’s planning now to make it in aluminium.



The 100 Bucks WONDER : SPYDERCO MANIX2 DARK BLUE LIGHTWEIGHT 110V ~ C101DBL2

Ok stop the press: here is a 100 dollars folder destined to be a workhorse: everything in this knife means business and the blade is made from CPM S110V !!!
This is Science Fiction. And this is real !

The Manix 2 Dark Blue is NOT a sprint run. This is the lightweight version of the Manix 2 C101G2 as instead of skeleton stainless steel handle with G10 the handle is made a solid tough fiberglass-reinforced nylon (FRN) and features Spyderco’s distinctive Bi-Directional Texturing™ pattern to ensure a secure grip in all environmental conditions…
Meaning: very light, well balanced, solid, impervious to the elements and easy to clean.
Yes, this very light blue handle gives a very nice balance to the Manix. It’s alive in your hands as I had noticed on the previous lightweight blue transparent handle version: this version is fast and well balanced.
Once clipped inside your pocket you forget it. This is a feather. You can clip it to you shorts with no afterthoughts.

The ball lock is as strong as ever. I’m ever able to open it as fast as an axis lock. Go figure. It opens in one fluid snap and closes in a flash with a gentle pull of the thumb on the encapsuled ball lock.

Four rivets are giving you some great reliability and the blade’s axis got screws on both side.One my friend, who was working in the African rain forest was sensitive to rivet: he knew his knife won’t betrayed him. Screws are getting loose and lost in the big wild Green. For him, rivets were security and reliability. The only noticed screws are on the axis as its tension is adjustable.

So that Manix is a workhorse not a cheap brother of the hard chore folder C101 but an “expedition ready” tool. Knowing that once you go in the wilderness every ounce you are carrying is important. BTW the C101DBL2 weights only 82 grammes !

Now about the blade: it’s an ultra wear resistant flat-ground CPM-110V blade !!!!
S110V !!!!

This is the best of the best in modern powder technological cutting performances alloys. It’s really stainless, strong and resilient.
Better than S90V. So they say. And it’s available on a 100 dollars knife. (The previous CPM110V Spyderco was the Native 5 Sprint Run with Carbon Fiber handle C41CFP5…). The cutting experience is unique as the End Lin User got access to the most modern alloy at a bargain price. The Ball Lock has also proven to be totally reliable evn on a FRN handle.

Now this kind of cutting edge proposition can be tricky. Not everybody knows how to maintain such speciality steel. For example, IMHO S90V is like chewing gum. It hates to give away its molecules.  S110V should be even trickier on stone and ceramic. So diamonds will be its best friends…Oh and compared to S90V which is hardened at 59HRC by Spyderco, CPM110V should be around 62HRC !!
Unless you got to much time on you hands, diamonds should be used but now “real knives” users will get the best steel on a full flat grind drop point blade with a strong lock?

For example: this folding knife would be a great tool for any Rain Forest explorer ! It has even killed my folding Izula dreams !! This is the kind of folder that will cut and cut and cut with no need to touch up during the trip far from civilization. S110V is like that. It won’t let you down ! You even won’t plan to re-sharp it once away from the base. I remember a Jeff Randall and Mike Perrin review in Tactical Knives where they were testing a Military in S60V… The knife was not touch up of all their trip. This is the kind of experience you will have with CPM110V: its working edge is destined to run for very very long. It should be some kind of Duracell Rabbit experience ! The edge will keep cutting cutting and cutting…
1095 will need a touch up for example but not CPM110V.


This is a great news as we end line users we got this HUGE opportunity to drive a Formula One for the price of a FIAT. And I had loved my FIAT… Of course my huge Manix S90V feels now like some kind of Aston Martin of a knife… Because it feels much heavy and here we are talking featherweight. But performance wise it’s not better and for its price I can buy 2 ou 3 CPM110V Manix 2 !!
And after the Serrata (which is also a bargain!) this lightweight Manix2 is bringing the best in the modern cutlery world for a Laguiole price.
Respect to Eric, Sal and the Spydercrew for this very democratic gesture. 😉
